ChariotTech Edge Blending System

---

Description:

Chariot Edge Blending System is a professional high-end graphics processing system, designed for large screen projection systems and seamless design, built-in multi-screen graphics and geometric correction fusion splicing technology, set multi-window video processing technology and edge-blending technology as a whole. Meanwhile Chariot edge blending system can support multiple different signal input, support 1 × N, N × 1 or N × M seamless edge blending display.

---

Feature:

Seamless splicing

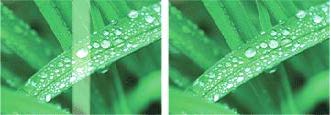

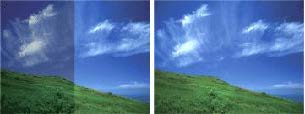

Chariot edge blending system can automatically generating the duplicate data of the merge the images, build repeat display area between different projection images. The processing functions of edge blending mainly achieve patchwork ablation, also built in a variety of gamma gradient mode and user-defined mode.

Color balance automatically

Automatic color balancing can eliminate the color and brightness differences between projection equipment, to ensure the big projection picture is uniform color, uniform brightness.

Geometric correction function

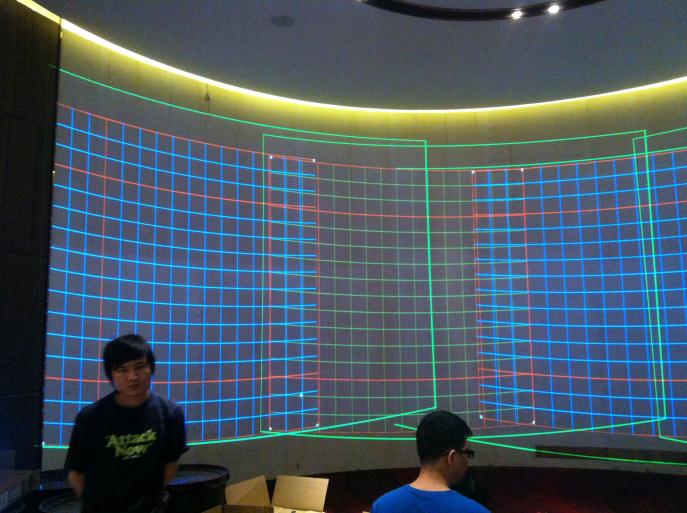

Chariot edge blending system fixes the geometry of the projected image, to ensure the integration of the controller can adapt to a variety of screen configurations, such as flat, cylindrical and spherical configurations, display a screen on the screen without geometric distortion.

Desktop blending

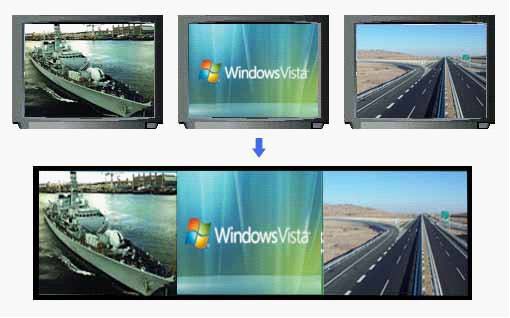

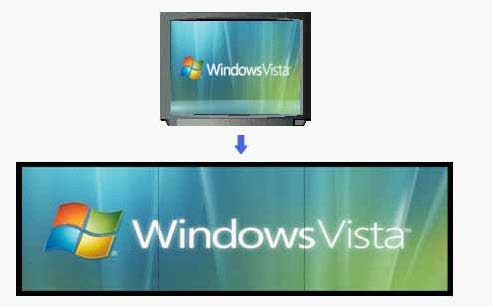

1. Full-screen display, like following pictures：

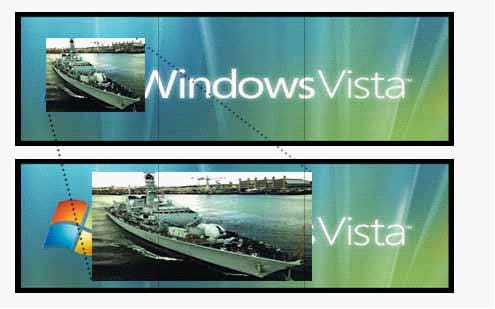

2. Window Zoom: Zoom the input window in proportion.

3. Windows stretching: Stretch the input window in proportion.

4. Three images shown to scale: like the following pictures, each window occupy one-third of the output window.

Ring screen system ：

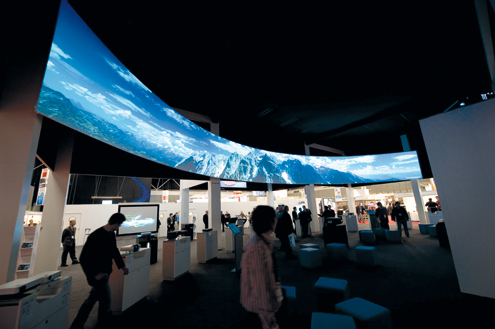

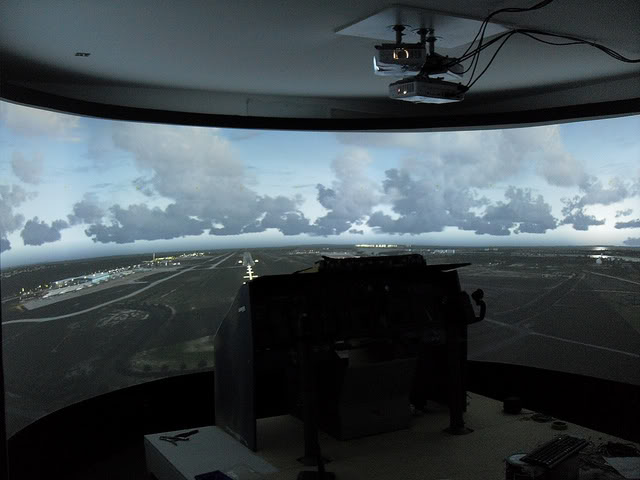

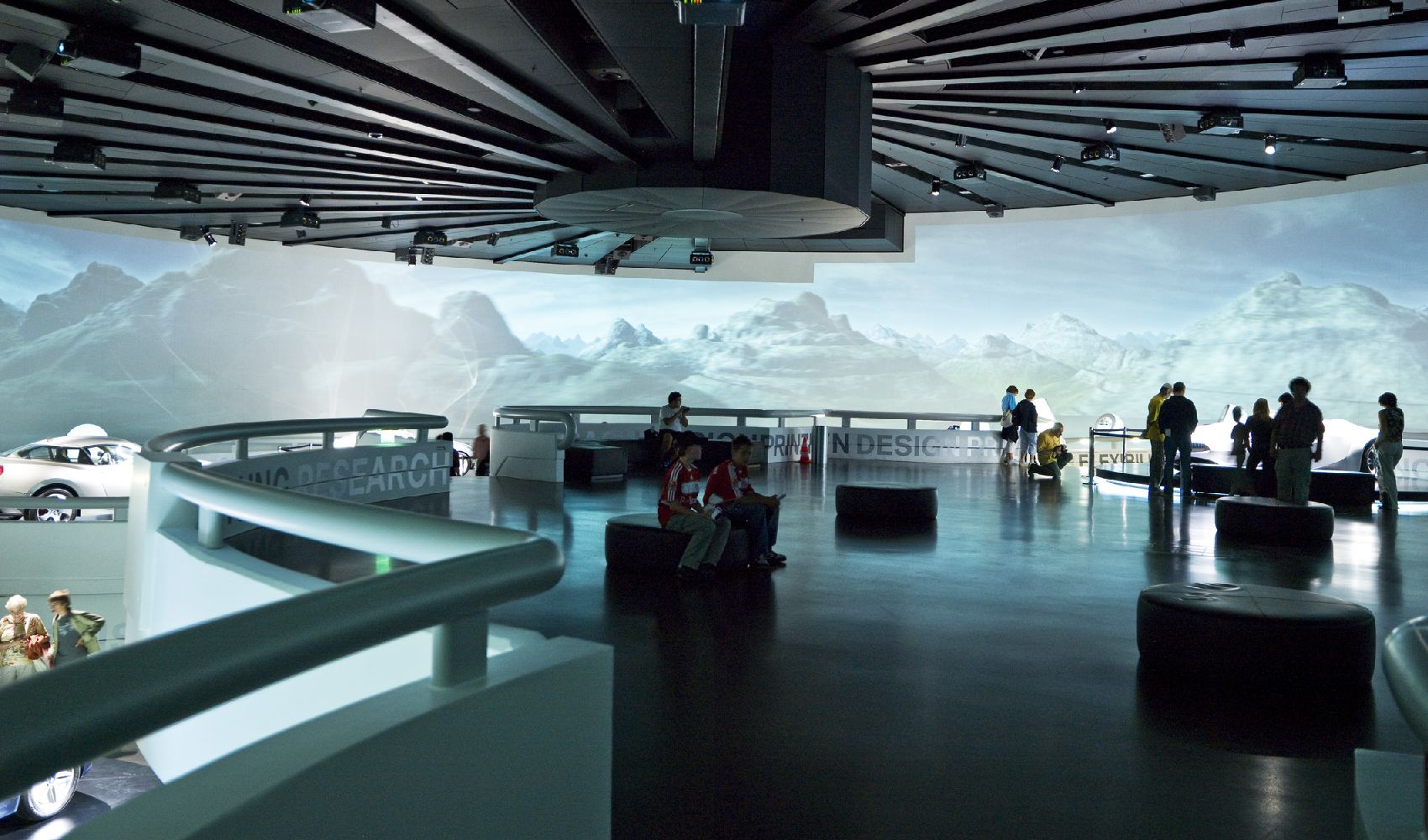

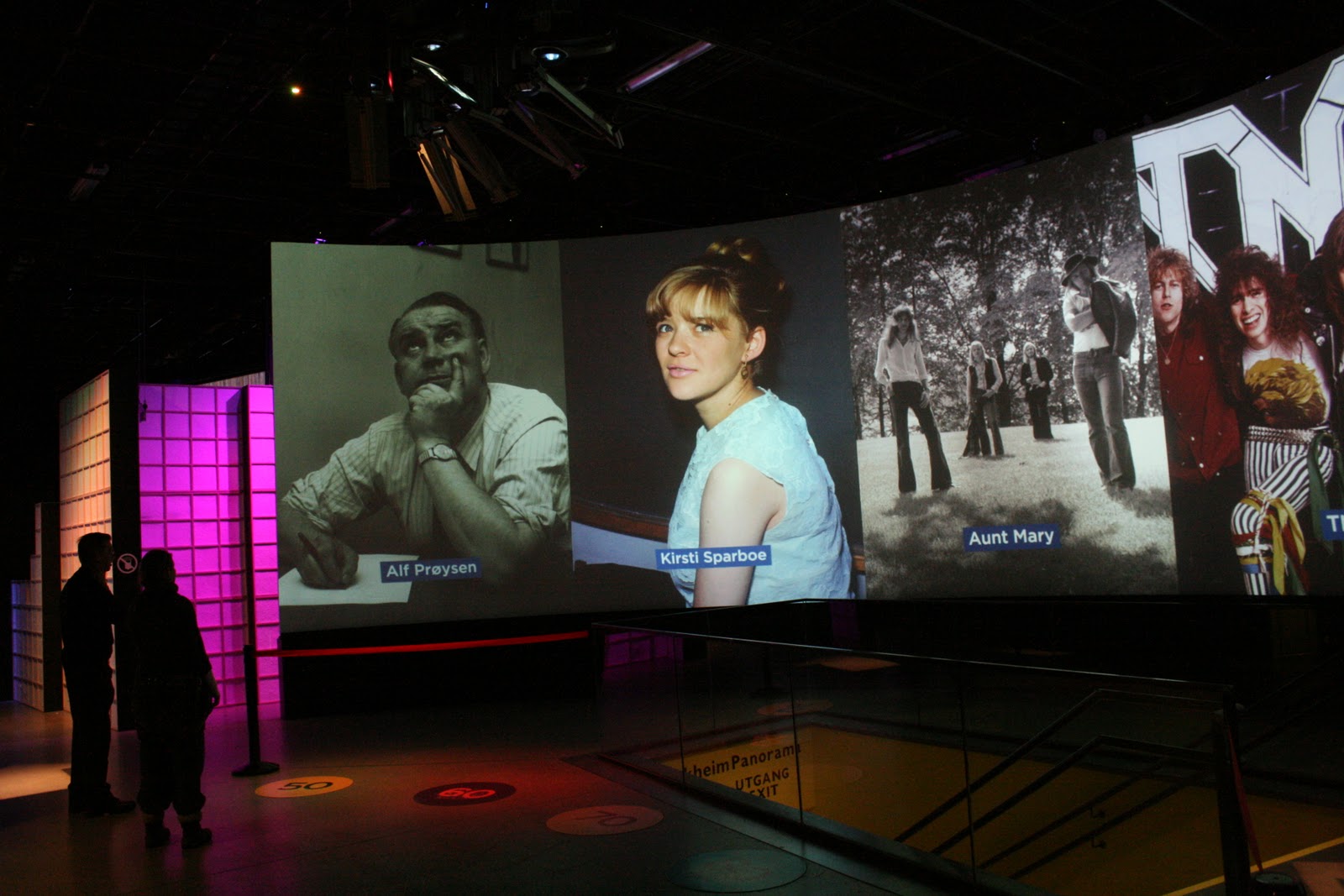

Normally according to the size of the screen, ring screen can be distinguished as 90°/120°/150°/180°/240°/360°. According to the number of projector, the ring screen can be divided into 2 channel, 3 channel, 4 channel, 5 channel and so on. 2 channel and 3 channel ring screen normally are used in 3D virtual projection display system. This system uses edge-blending technology to project multiple projection image on the screen, and form a 3D digital image and displayed in a large wall in real time. Makes viewing and participants get an immersive and virtual simulation visual experience.

Application:

Typically used for some large-scale virtual simulation applications: virtual battlefield simulation, digital urban planning, geographic information systems, large-scale three-dimensional scene simulation environment, exhibition, industrial design, education and training, conference centers and other professional fields.
