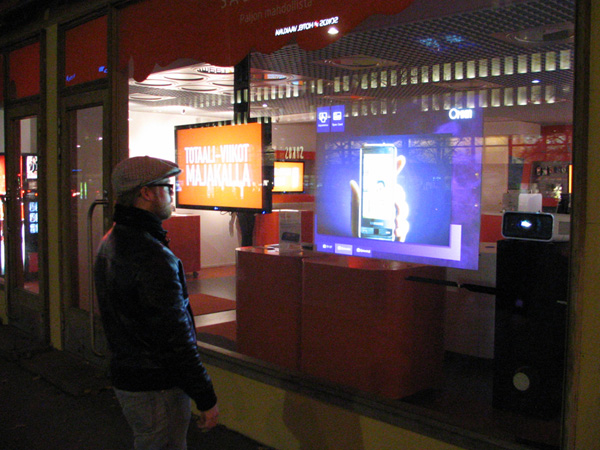

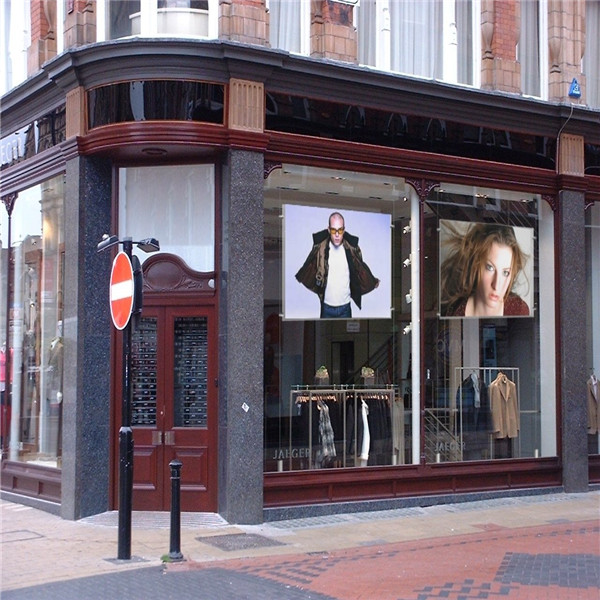

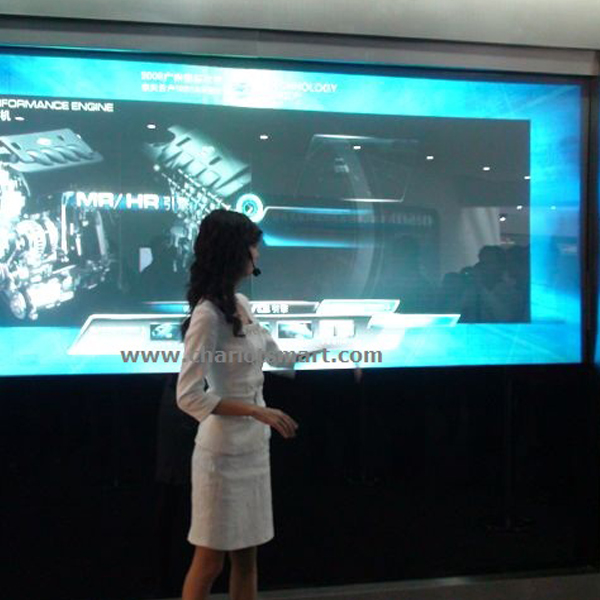

Chariot Tech Rear Projection Film is a high quality film primarily used for store window displays and high end video applications. This unique high resolution screen technology offers superior brightness, contrast and black levels even in high ambient light and daylight.
The width of film is 1.5m as default, and the length is available in a range of 1m- 30m. Custom shapes and sizes are also available and pieces can be simply joined to create large format displays. Chariot Tech rear projection film has a self adhesive layer (peel and stick) making it easy to apply to glass or plexiglas.Our rear projection film is also available as an interactive touch foil ideal for Digital Signage
There are five kinds of films we can offer to customer:

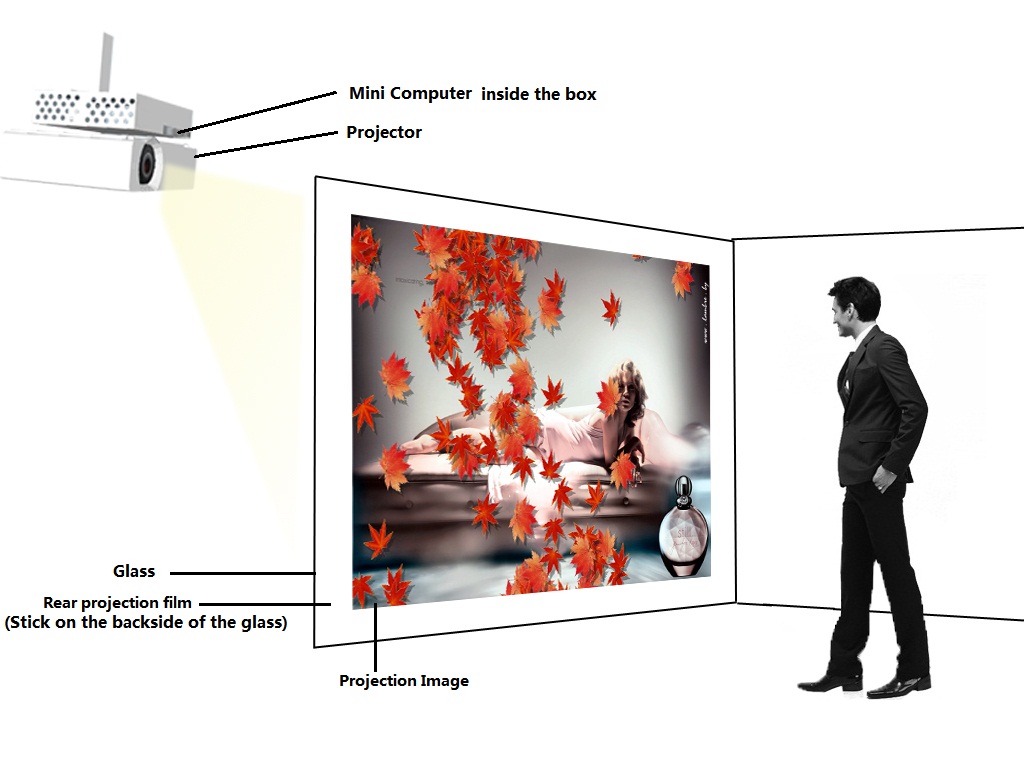

Chariot create an all-in-one rear projection solution for customer. Transparent/gray/dark gray film can make your glass to be an amazing screen easily. Just simply paste it on the backside of glass and the glass will show the attractive projection image.
TEST ITEM | Unit | Transparent | Dark Gray | Gray | White | Black |
Thickness | um | 125 | 125 | 125 | 125 | 125 |
Film width | mm | 1524 | 1524 | 1524 | 1524 | 1524 |
Transmittance | % | 88 | 35 | 54 | 94 | 94 |
Gain1 | - | 0.55 | 1.2 | 1 | 1 | 1 |
View angle | ¡ã | 150 | 175 | 175 | 175 | 175 |
Contrast | - | 350:1 | 1500:1 | 1500:1 | 1500:1 | 1500:1 |
Adhesive | - | Windows or Acrylic | Windows or Acrylic |
Windows or Acrylic |
Windows or Acrylic |
Windows or Acrylic |

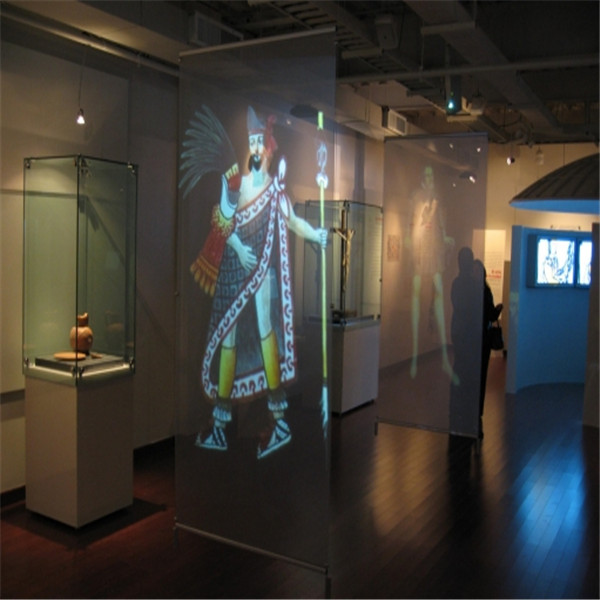

Transparent: Normally, transparent rear projection film can have a good effect in dark environment. It is transparent, so people can see things through the film. Also it will have a holographic image. But if the indoor light is too strong, the projection image can not been seen clearly.
Gray: Gray film can be used both in dark and light environment. And in both environment can achieve a good image. But people can not see things through the film.
Dark gray: Dark gray film has a high contrast then gray one. So it can be used on the strong light environment. Also people can not see things through the film.

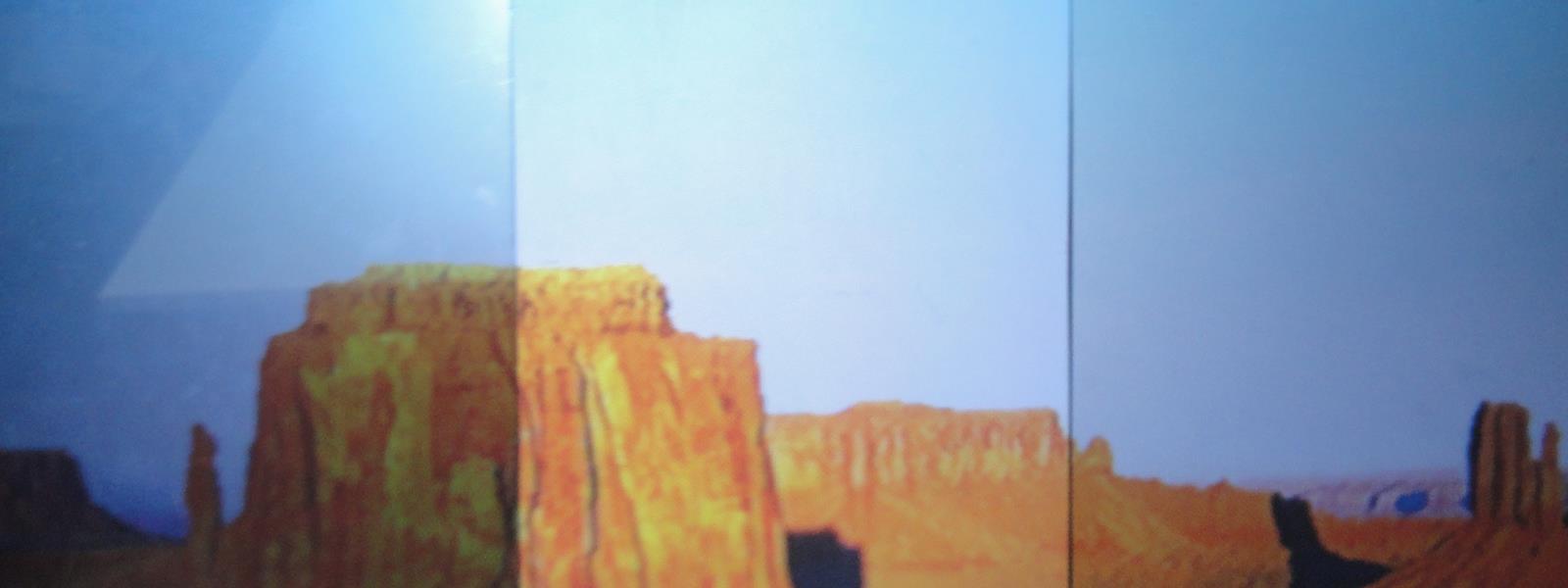

Transparent Gray Dark gray
Transparent Gray Dark gray
